Transparent moisture-proof film

Uses: organic electroluminescent sheet, solar thin film battery, electronic devices, pharmaceutical packaging, etc., to protect the seal against moisture penetration.
Significance: Improve the life of the device in the humid environment 1-5 times.
Principle: The surface of the PET film is prepared with a special barrier molecular permeable layer.
Usage: Through the household card film hot pressing laminator, hot press paste sealing. Or hot pressed film sealing by hot pressing film sealing machine.
Specifications: coil width 1.2m, length 250m / volume, light transmittance of 95% or more, material special PET
Film: thickness is about 0.125mm, and the edge width is recommended to be more than 2mm.
Storage: Store at room temperature for 23 years and seal for more than 10 years. Store in normal environment for more than 5 years (the adhesive strength may drop); use an electronic drying cabinet for 48 hours before use.



PET1

PET2

PET3

Back film

Double-sided film

Material

transparent plastic

transparent plastic

transparent plastic

opaque

transparent plastic

Temperature resistance(℃)

120

120

140

130

140

Transmittance

80%

80%

70%

0

70%

Haze

0.8

0.8

0.6

0.6

WVTR  g/m2 Day

<5.0E-2

<5.0E-3

<5.0E-2

<5.0E-3

0

Moisture resistance level

ii

i

ii

i

Supporting use

Instructions

Hot press seal

Hot press seal

Hot press seal

Hot press seal

Hot press seal

Thickness(mm)

0.125

0.125

0.125

0.1

0.1

Weather resistance

Good

Good

Excellent

Good

Heat sealing waterproof film

principle

Nano-barrier layer

Nano-barrier layer

Nano-barrier layer

Metal barrier

Heat sealant

Size

1.2m,

1.2m,

A4

0.755m

1.27m

Package(㎡)

250

250

150

200

50

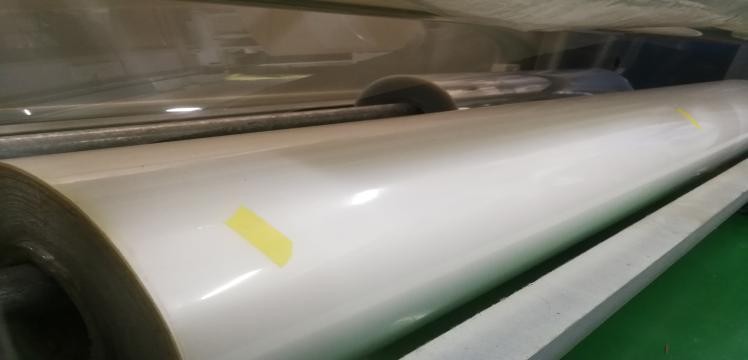

水分子阻隔膜1
